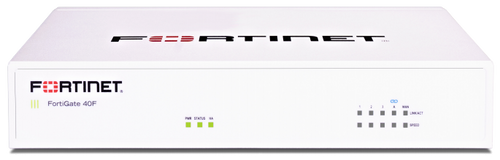

Fortinet FortiGate 40F

The FortiGate Next-Generation Firewall 40F series is ideal for
building security-driven networks at distributed enterprise
sites and transforming WAN architecture at any scale.
FG-40F

תוספות ושדרוגים


כמות
זמן אספקה: 5 ימים , קיימת אפשרות לאיסוף עצמי
למה לקוחות קונים אצלנו:
  • זמן אספקה: עד 5 ימים
  • אפשרות לעד 12 תשלומים ללא ריבית
  • משלוח חינם, קניה מאובטחת ושירות לקוחות מעולה
משלוח חינם משלוח חינם
קניה בטוחה

מידע נוסף

The Fortinet Enterprise Firewall Solution

The FortiGate 40F series delivers next generation firewall capabilities for mid-sized to large enterprises, with the flexibility to be deployed at the campus or enterprise branch. Protects against cyber threats with security processor powered high performance, security efficacy and deep visibility.

Security

  • Identifies thousands of applications inside network traffic for deep inspection and granular policy enforcement § Protects against malware, exploits, and malicious websites in both encrypted and non-encrypted traffic § Prevents and detects against known and unknown attacks using continuous threat intelligence from AI-powered FortiGuard Labs security services

Performance

  • Delivers industry’s best threat protection performance and ultra-low latency using purpose-built security processor (SPU) technology § Provides industry-leading performance and protection for SSL encrypted traffic

Certification

  • Independently tested and validated best security effectiveness and performance § Received unparalleled third-party certifications from NSS Labs, ICSA, Virus Bulletin, and AV Comparatives

Networking

  • Best of Breed SD-WAN capabilities to enable application steering using WAN path control for high quality of experience § Delivers advanced networking capabilities, high-performance, and scalable IPsec VPN capabilities

Management

  • Includes a Management Console that is effective, simple to use, and provides comprehensive network automation & visibility. § Provides Zero Touch Integration with Security Fabric’s Single Pane of Glass Management § Predefined compliance checklist analyzes the deployment and highlights the best practices to improve overall security posture

Security Fabric

  • Enables Fortinet and Fabric-ready partners’ products to provide broader visibility, integrated end-to-end detection, threat intelligence sharing and automated remediation § Automatically builds Network Topology visualizations which discover IoT devices and provide complete visibility into Fortinet and Fabric-ready partner products

פרטים טכניים

כללי
  • GE RJ45 WAN / DMZ Ports 1
  • GE RJ45 Internal Ports 3
  • GE RJ45 FortiLink Ports 1
  • GE RJ45 PoE/+ Ports -
  • Wireless Interface -
  • USB Ports 1
  • Console (RJ45) 1
  • *Internal Storage *
  • IPS Throughput 1 Gbps
  • NGFW Throughput 800 Mbps
  • Threat Protection Throughput 600 Mbps
System Performance
  • Firewall Throughput (1518 / 512 / 64 byte UDP packets) 5/5/5 Gbps
  • Firewall Latency (64 byte UDP packets) 4 μs
  • Firewall Throughput (Packets Per Second) 7.5 Mpps
  • Concurrent Sessions (TCP) 700,000
  • New Sessions/Second (TCP) 35,000
  • Firewall Policies 5,000
  • IPsec VPN Throughput (512 byte) 4.4 Gbps
  • Gateway-to-Gateway IPsec VPN Tunnels 200
  • Client-to-Gateway IPsec VPN Tunnels 250
  • SSL-VPN Throughput 490 Mbps
  • Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) 200
  • SSL Inspection Throughput (IPS, avg. HTTPS) 310 Mbps
  • SSL Inspection CPS (IPS, avg. HTTPS) 320
  • SSL Inspection Concurrent Session (IPS, avg. HTTPS) 55,000
  • Application Control Throughput (HTTP 64K) 990 Mbps
  • CAPWAP Throughput (HTTP 64K) 3.5 Gbps
  • Virtual Domains (Default / Maximum) 10 / 10
  • Maximum Number of FortiSwitches Supported 8
  • Maximum Number of FortiAPs (Total / Tunnel Mode) 10 / 5
  • Maximum Number of FortiTokens 500
  • Maximum Number of Registered FortiClients 200
  • High Availability Configurations Active / Active, Active / Passive, Clustering
Dimensions
  • Height x Width x Length (inches) 1.44 x 5.5 x 8.52
  • Height x Width x Length (mm) 36.5 x 140 x 216
  • Weight TBA
  • Form Factor Desktop
Operating Environment and Certifications
  • Power Required 100–240V AC, 60–50 Hz (External DC Power Adapter, 12 VDC)
  • Maximum Current 100V AC / 0.2A, 240V AC / 0.1A
  • Total Available PoE Power Budget N/A
  • Power Consumption (Average / Maximum) 12.4 W / 15.4 W
  • Heat Dissipation 52.55 BTU/hr
  • Operating Temperature 32–104°F (0–40°C)
  • Storage Temperature -31–158°F (-35–70°C)
  • Humidity 10–90% non-condensing
  • Noise Level Fanless 0 dBA
  • Operating Altitude Up to 7,400 ft (2,250 m)
  • Compliance FCC Part 15 Class B, C-Tick, VCCI, CE, UL/cUL, CB
  • Certifications ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN
כללי
  • מק"טFG-40F
