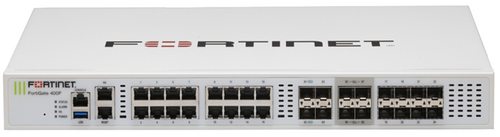

FortiGate 400F Series Fortinet

The FortiGate 400F Series NGFW combines AI-powered
security and machine learning to deliver Threat Protection
at any scale. Get deeper visibility into your network and see
applications, users, and devices before they become threats.
FG-400F

תוספות ושדרוגים


כמות
זמן אספקה: 5 ימים , קיימת אפשרות לאיסוף עצמי
למה לקוחות קונים אצלנו:
  • זמן אספקה: עד 5 ימים
  • אפשרות לעד 12 תשלומים ללא ריבית
  • משלוח חינם, קניה מאובטחת ושירות לקוחות מעולה
משלוח חינם משלוח חינם
קניה בטוחה

מידע נוסף

Next Generation Firewall (NGFW) FortiGuard Labs’ suite of AI-powered Security Services—natively integrated with your NGFW—secures web, content, and devices and protects networks from ransomware and sophisticated cyberattacks Real-time SSL inspection (including TLS 1.3) provides full visibility into users, devices, and applications across the attack surface Fortinet’s patented SPU (Security Processing Unit) technology provides industry-leading high-performance protection Secure SD-WAN FortiGate WAN Edge powered by one OS and unified security and management framework and systems transforms and secures WANs Delivers superior quality of experience and effective security posture for work-from-any where models, SD-Branch, and cloud-first WAN use cases Achieve operational efficiencies at any scale through automation, deep analytics, and self-healing Universal ZTNA Control access to applications no matter where the user is and no matter where the application is hosted for universal application of access policies Provide extensive authentications, checks, and enforce policy prior to granting application access—every time Agent-based access with FortiClient or agentless access via proxy portal for guest or BYOD Segmentation Dynamic segmentation adapts to any network topology to deliver true end-to-end security—from the branch to the datacenter and across multi-cloud environments Ultra-scalable, low latency, VXLAN segmentation bridges physical and virtual domains with Layer 4 firewall rules Prevents lateral movement across the network with advanced, coordinated protection from FortiGuard Security Services detects and prevents known, zero-day, and unknown attacks

פרטים טכניים

כללי
  • חומרה Accelerated GE RJ45 Interfaces 16
  • חומרה Accelerated GE SFP Slots 8
  • חומרה Accelerated 10GE SFP+ Slots 4
  • Hardware Accelerated 10GE SFP+ Ultra Low Latency Slots 4
  • GE RJ45 Management Ports 2
  • USB Ports 1
  • RJ45 Console Port 1
  • Onboard Storage NIL
  • Trusted Platform Module (TPM) Yes
  • *Included Transceivers 2x SFP (SX 1 GE), System Performance — Enterprise Traffic Mix
  • IPS Throughput 12 Gbps
  • NGFW Throughput 10 Gbps
  • Threat Protection Throughput 9 Gbps
System Performance and Capacity
  • * , IPv4 Firewall Throughput
  • *(1518 / 512 / 64 byte, UDP) 79.5 / 78.5 / 70 Gbps, IPv6 Firewall Throughput
  • (1518 / 512 / 64 byte, UDP) 79.5 / 78.5 / 70 Gbps
  • Firewall Latency (64 byte, UDP) 4.19 μs / 2.5 μs
  • Firewall Throughput (Packet per Second) 105 Mpps
  • Concurrent Sessions (TCP) 7.8 Million
  • New Sessions/Second (TCP) 500,000
  • Firewall Policies 10,000
  • IPsec VPN Throughput (512 byte) 55 Gbps
  • Gateway-to-Gateway IPsec VPN Tunnels 2,000
  • Client-to-Gateway IPsec VPN Tunnels 50,000
  • SSL-VPN Throughput 3.6 Gbps
Concurrent SSL-VPN Users
  • (Recommended Maximum, Tunnel Mode) 5,000
  • SSL Inspection Throughput (IPS, avg. HTTPS) 8 Gbps
  • SSL Inspection CPS (IPS, avg. HTTPS) 6,000
  • SSL Inspection Concurrent Session (IPS, avg. HTTPS) 800,000
  • Application Control Throughput (HTTP 64K) 28 Gbps
  • CAPWAP Throughput (HTTP 64K) 65 Gbps
  • Virtual Domains (Default / Maximum) 10 / 10
  • Maximum Number of FortiSwitches Supported 72
  • Maximum Number of FortiAPs (Total / Tunnel) 512 / 256
  • Maximum Number of FortiTokens 5,000
  • High Availability Configurations Active-Active, Active-Passive, Clustering
Dimensions and Power
  • Height x Width x Length (inches) 1.75 x 17.0 x 15.0
  • Height x Width x Length (mm) 44.45 x 432 x 380
  • Weight 14.11 lbs (6.4 kg)
  • Form Factor Rack Mount, 1 RU
  • Power Consumption (Average / Maximum) 154.8 W / 189.2 W
  • Power Source 100–240V AC, 50/60Hz
  • Current (Maximum) 6A
  • Heat Dissipation 645.58 BTU/h
  • Power Supply Efficiency Rating 80Plus Compliant
  • Redundant Power Supplies (Hot Swappable) (Default dual AC PSU for 1+1 Redundancy)
Operating Environment and Certifications
  • Operating Temperature 32–104°F (0–40°C)
  • Storage Temperature -31–158°F (-35–70°C)
  • Humidity 5–90% non-condensing
  • Noise Level LPA 48 dBA / LWA 55 dBA
  • Operating Altitude Up to 10 000 ft (3048 m)
  • Noise Level LPA 48 dBA / LWA 55 dBA
  • Airflow Side and Front to Back
  • Compliance FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB
  • Certifications ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN, USGv6/IPv6
כללי
  • מק"טFG-400F
